Digital Display Hydraulic Brick Stone Concrete Compression Testing Machine for Industrial Materials Test

Basic Info

Model NO.	YES
Productivity	Other
Feeding Height	Customized
Vibrating Amplitude	Customized
Certification	CE, ISO
Condition	New
Color	Blue
Transport Package	Export Package
Trademark	CHENGYU
Origin	China
HS Code	9024800000
Production Capacity	1000

Product Description

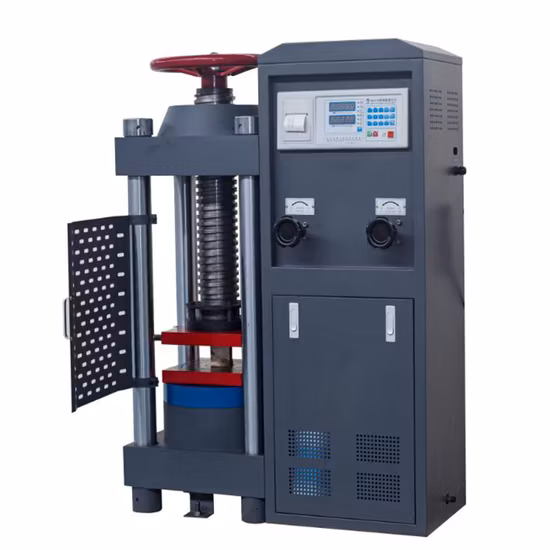

YES Series Digital Display Concrete Pressure Testing Machine

1.Main Application YES-2000 digital display compression testing machine mainly used for concrete rupture strength testing,cement, plastic sand,and red brick building materials compression resist testing. Widely used in metallurgy,building materials,space flight and aviation,colleges and universities,R&D institution lines.The test operation and data processing meets standard requirements.2.Main Technical Parameters

Model	YES-2000	YES-1000
Max. load	2000kN/200Ton	1000kN/100Ton
Machine Class	1 class
Range of test force	4% ~100%FS
Testing space adjust method	Manual adjust
Indicating value accuracy	±1%
Piston stroke	50mm
Diameter of Piston	250mm
Distance between platens	320mm
Upper platen size	240*240mm (Can be customized)
Lower platen size	250*300mm (Can be customized)

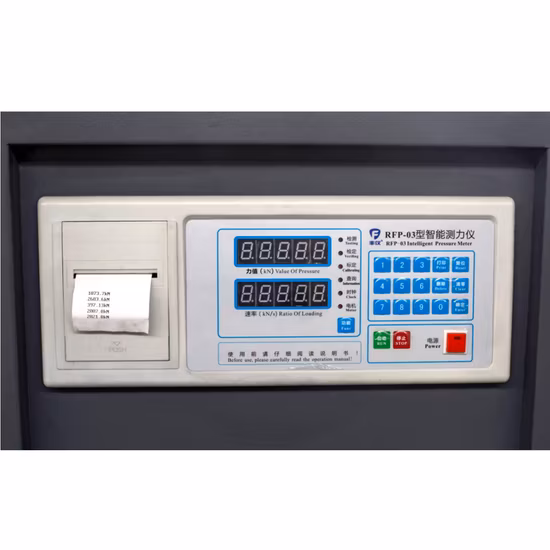

Display	LCD
Power supply	AC380V/50Hz/3 phase(can be customized)
Size	900×400×1150 mm
Weight	750kg



Package and Shipping
1. Packing Method: Horizontal Packing to saving moreipping cost.

2. Packing Materials: Plywood Case metting export long transport requirement.

3. Shiping Time: Shipped within 15-20 days after payment.

4. Shipping Way: Shipped by sea or air is available.

FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
